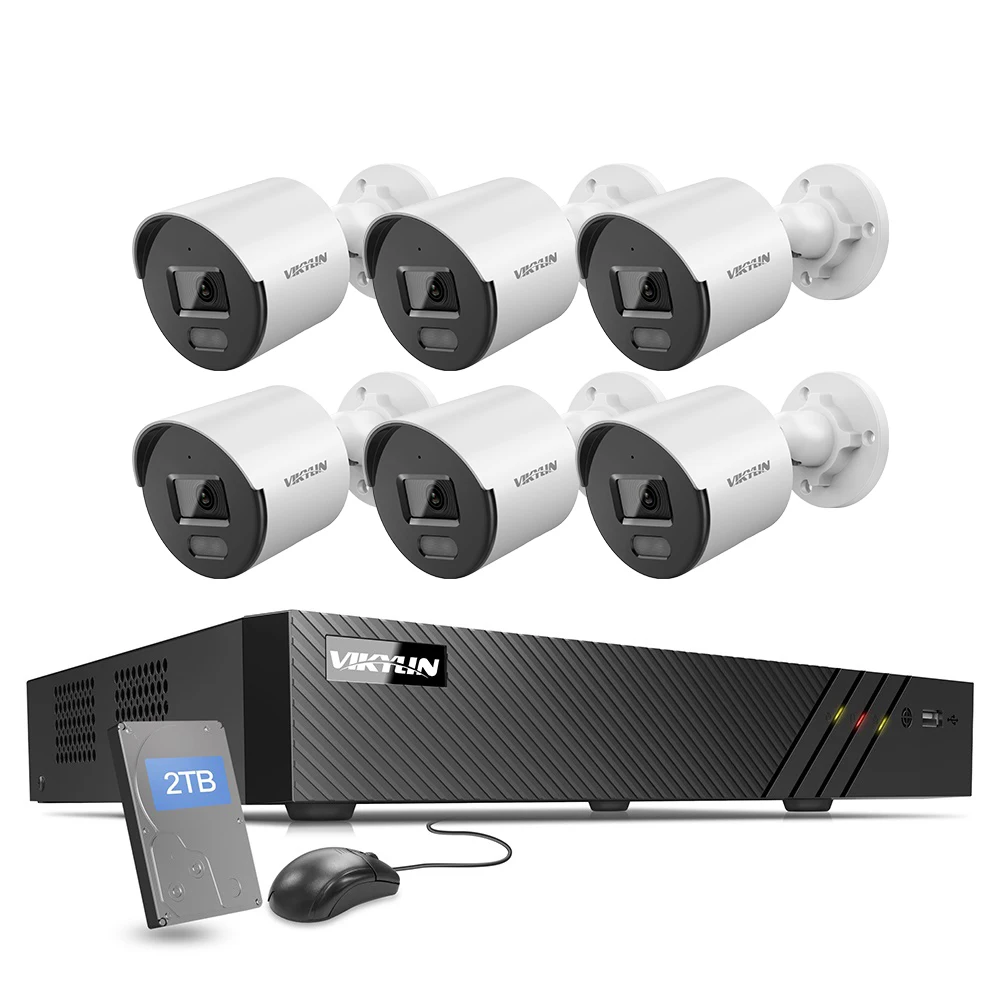

Système de vidéosurveillance à 8 canaux POE Dome Home Security Ip Camera 5MP
199,99 €
Description
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-2{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;font-style:normal;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-3{width:750px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:630px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:-91px;margin-left:-3px;width:750px;height:750px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:85.0114px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:156px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:432px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{display:none}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:86px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:143px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:548px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:711.977px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:571px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-19{margin-bottom:0}#detail_decorate_root .magic-20{position:relative;width:100%}#detail_decorate_root .magic-21{width:750px;height:849px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-22{position:relative;left:0;top:0;width:750px;height:750px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:392.29950319375445px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:392.29950319375445px}#detail_decorate_root .magic-25{vertical-align:top}#detail_decorate_root .magic-26{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-27{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-28{padding:0;margin:0;white-space:pre-wrap;font-size:14px}
Product Description
What NVR WILL YOU GET
|
Video/Audio input
|
IP video input
|
8-ch
|
|
Up to 8 MP resolution
|
||
|
Two-way audio
|
1-ch, RCA (2.0 Vp-p, 1 k Ω)
|
|
|
Network
|
Incoming bandwidth
|
80 Mbps
|
|
Outgoing bandwidth
|
80 Mbps
|
|
|
Video/Audio output
|
Recording resolution
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
HDMI output resolution
|
1-ch, 4K (3840 ×
2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
VGA output resolution
|
1-ch, 1920 × 1080p/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Audio output
|
1-ch, RCA (Linear, 1 KΩ)
|
|
|
Decoding
|
Decoding format
|
H.264/H.264+/MPEG4
|
|
Live view / Playback resolution
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
|
Synchronous playback
|
8-ch
|
|
|
Capability
|
1-ch @ 8 MP / 4-ch @ 1080p
|
|
|
Network management
|
Network protocols
|
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS
|
|
Hard disk
|
SATA
|
1 SATA interface
|
|
Capacity
|
Up to 6TB capacity for each disk
|
|
|
External interface
|
Network interface
|
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
|
|
USB interface
|
2 × USB 2.0
|
|
|
POE Interface
|
Interface
|
8, RJ-45 10/100 Mbps
self-adaptive Ethernet interface |
|
Power
|
≤ 75W
|
|
|
Standard
|
IEEE 802.3 af/at
|
|
|
General
|
Power supply
|
48 VDC
|
|
Power
|
≤ 90 W
|
|
|
Consumption(without hard disk)
|
≤ 10 W (without enabling PoE)
|
|
|
Working temperature
|
-10 to +55º C (+14 to +131º F)
|
|
|
Working humidity
|
10 to 90 %
|
|
|
Chassis
|
1U chassis
|
|
|
Dimensions(W × D × H)
|
315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
|
|
|
Weight(without hard disk)
|
≤ 1 kg (2.2 lb)
|

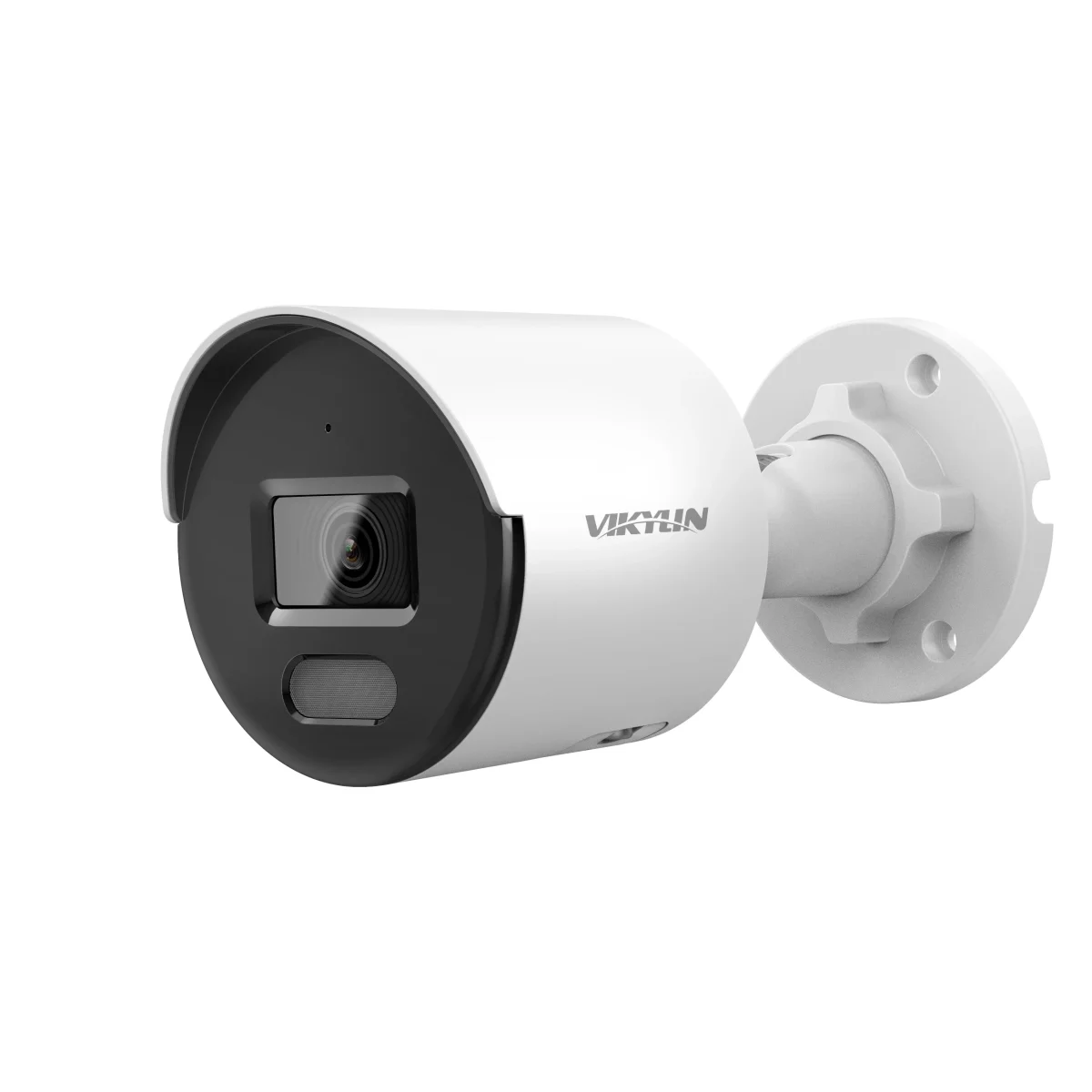

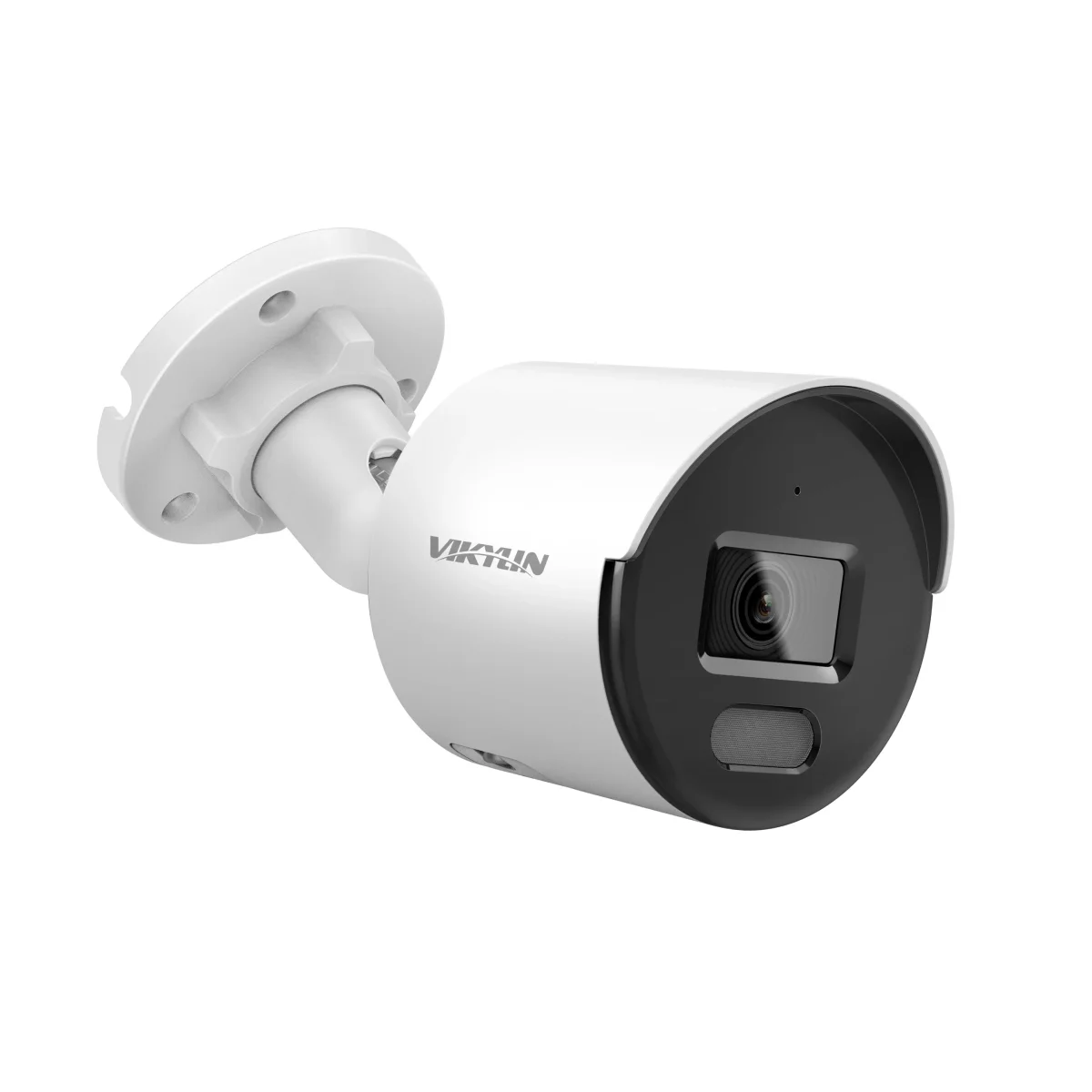

4MP Colorvu Camera Spec
|
Image Sensor
|
1/3″ Progressive Scan CMOS
full color vikylin cube turet indoor outdoor ip67 mic sd slot 5MP motion detection 8ch poe nvr security camera cctv system |
|
|
Min. Illumination
|
Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
|
|
|
Shutter Speed
|
1/3 s to 1/100, 000 s
|
|
|
Slow Shutter
|
Yes
|
|
|
Wide Dynamic Range
|
120 dB
|
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
|
|
|
Lens
|
||
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°
4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1° |
|
|
Lens Mount
|
M12
|
|
|
Focus
|
Fixed
|
|
|
Aperture
|
F1.0
|
|
|
DORI
|
||
|
DORI
|
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m |
|
|
Illuminator
|
||
|
Smart Supplement Light
|
Yes
|
|
|
White Light Range
|
Up to 30 m
|
|
|
Video
|
||
|
Max. Resolution
|
2560 × 1920
|
|
|
Main Stream
|
50 Hz: 20 fps (2560 × 1920)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
|
Sub-Stream
|
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
|
Video Compression
|
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG |
|
|
Video Bit Rate
|
32 Kbps to 16 Mbps
|
|
|
H.264 Type
|
Baseline Profile/Main Profile/High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
H.264+
|
Main stream supports
|
|
|
H.265+
|
Main stream supports
|
|
|
Region of Interest (ROI)
|
1 fixed region for main stream
|
|
|
Audio
|
||
|
Audio Compression
|
-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
|
|
|
Audio Bit Rate
|
-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
|
|
|
Audio Sampling Rate
|
-UF: 8 kHz/16 kHz
|
|
|
Environment Noise Filtering
|
-UF: Yes
|
|
|
Network
|
||
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP,
SSL/TLS |
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
API
|
Open Network Video Interface, ISAPI
|
|
|
User/Host
|
Up to 32 users. 3 levels: administrator, operator and user
|
|
|
Client
|
iVMS-4200, Hik-Connect
|
|
|
Web Browser
|
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
|
|
|
||
|
Image Settings
|
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
|
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
|
Image Enhancement
|
BLC, 3D DNR
|
|
|
Interface
|
||
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
|
On-Board Storage
|
-UF: Built-in memory card slot, support microSD card, up to 256 GB
|
|
|
Built-in Microphone
|
-UF: Yes
|
|
|
Hardware Reset
|
-UF: Yes
|
|
|
Event
|
||
|
Basic Event
|
Motion detection, video tampering alarm, exception
|
|
|
General
|
||
|
Linkage Method
|
Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
|
|
|
Camera Material
|
Metal & Plastic
|
|
|
Camera Dimension
|
Ø109.9 mm × 103.6 mm (Ø4.33″ × 4.08″)
|
|
|
Package Dimension
|
150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
|
|
|
Camera Weight
|
Approx. 380 g (0.84 lb.)
|
|
|
With Package Weight
|
Approx. 600 g (1.32 lb.)
|
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
|
|
|
Startup and Operating Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
|
|
|
Web Client Language
|
English, Ukrainian
|
|
|
General Function
|
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
|
|
|
Firmware Version
|
V5.5.122
|
|
|
Power Consumption and Current
|
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
|
|
Power Supply
|
12 VDC ± 25%
PoE: 802.3af, Class 3 |
|
|
Power Interface
|
Ø5.5 mm coaxial power plug
|
|
|
Approval
|
||
|
EMC
|
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
|
Informations complémentaires
| TYPE | |
|---|---|
| Style | bullet 5mp colorvu mic SD slot, turet 5mp colorvu mic sd slot |
